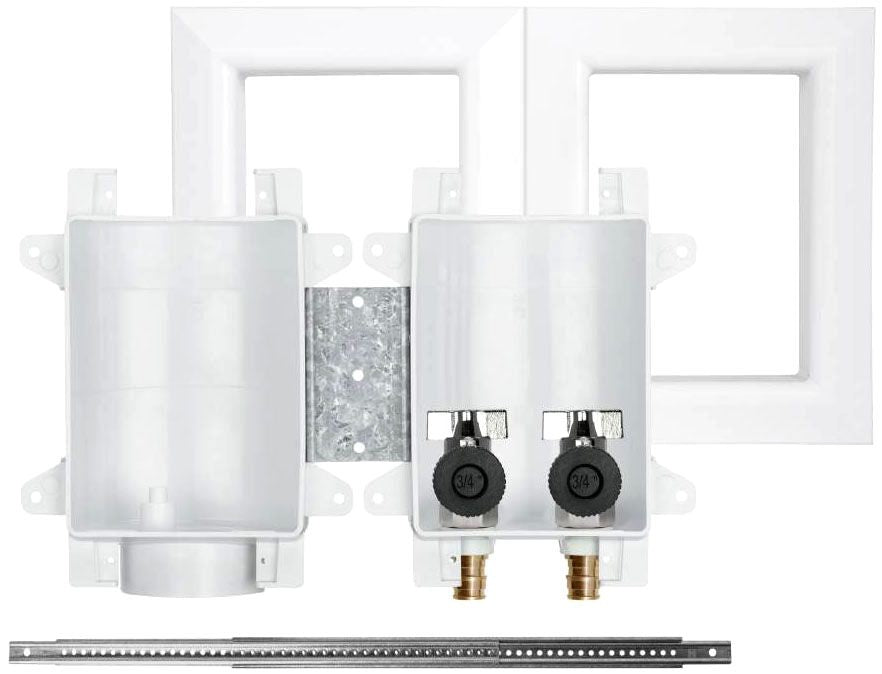

Sioux Chief 696-G2303WF Washing Machine Outlet Box

Sioux Chief 696-G2303WF Washing Machine Outlet Box

• Washing Machine Outlet Box
• Brand Name Oxbox[Tm]
• Model 696
• Item Washing Machine Outlet Box
• Type 2-Hole
• Applicable Standard Asme A112.18.1, Nsf 372, Cupc, Iapmo
• Pipe Connection 1/2 Inch Astm F1960 Grip Pex X 3/4 Inch Male Hose Threaded
• Box Size 3-5/8 Inch Width X 5-1/8 Inch Height
• Face Plate Size 11-1/2 Inch Width X 7-1/4 Inch Height
• Material Abs Plastic
• Valve Supplied Yes
• Valve Details High Quality 1/4 Quarter-Turn Ball, Forged Brass (Body), Copper, Ppsu, Cpvc, 304 Stainless Steel Grip Ring Brass Nut, Silicone Seal (Shank), Working Temperature 200 Deg F, Air/Working/Testing Water Pressure 150 Psig
• Inclusions/Features Galvanized Steel Bracket/Box Clip, Supply Box, Abs Plastic Frame, Debris Cover
• Additional Information Lead-Free
• Frame Opening Size 3-5/8 Inch Width X 5-1/8 Inch Height
• Bracket Size 18 Inch Length 5/8 Inch Width
• Test Nipple 5/8 Inch Outer Diameter
• Drain Connection 2 Inch Hub
• Excludes Arrester
