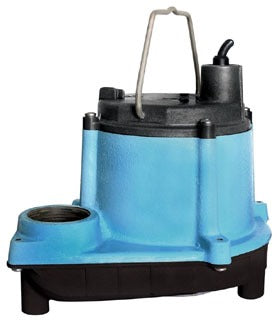

Little Giant 506158 Submersible Pump

Little Giant 506158 Submersible Pump

• Submersible Pump
• Model 6
• Applicable Standard Csa (Canada And Us)
• Discharge Size 1-1/2 Inch
• End Connection Female Threaded Outlet
• Overall Dimensions 6 Inch Height
• Float Type Integral Diaphragm
• Flow Rate 46 Gpm At 5 Foot
• Discharge Head 18 Foot
• Casing Material Polypropylene
• Shaft Material Cold Rolled Steel
• Housing Material Epoxy Coated Cast Iron
• Impeller Material Nylon
• Impeller Design Non-Clog
• Shaft Seal Details Mechanical Shaft Seal Nitrile With Carbon And Ceramic Face
• Power Cord Length 10 Foot
• Power Rating 1/3 Hp
• Input Supply Rating 720 Watt 115 Volt Ac 50/60 Hertz 9 Amp (Fla)/14.3 Amp (Start)
• Pressure Rating 7.8 Psi
• Motor Type Shaded Pole, Oil Filled, Thermal Overload Protection
• Inclusions/Features 1-1/4 Inch Female Threaded Reducer Bushing, 3/4 Inch Garden Hose Threaded Adapter, Pvc Riser Leg
• Application Basement Sump, Dewatering, Water Transfer
• Additional Information Cord Type 3-Conductor 18 Awg Sjtw
• Switch Setting 7 To 10 Inch (On), 1 To 4 Inch (Off)
