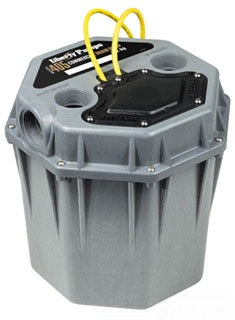

Liberty 405 Drain Pump
- Drain Pump
- Type High Head, High Temperature, Automatic Switch
- Applicable Standard Csa (Canada And Us), Sspma, Iso 9001
- Inlet Size 2 Inch
- Discharge Size 2 Inch
- End Connection Female Threaded X Female Threaded
- Basin Capacity 5.5 Gallon
- Basin Dimensions 13-3/4 Inch Width X 14-1/8 Inch Height
- Flow Rate 48 Gpm At 5 Foot
- Discharge Head 34 Foot
- Shaft Material 300/400 Stainless Steel
- Basin Material Polyolefin
- Housing Material Deep Finned Powder Coated Aluminum
- Impeller Material High Temperature Engineered Polymer
- Impeller Design Vortex
- Warranty 3 Year Limited
- Shaft Seal Details Double Lip Seal With Stainless Spring
- Solid Size 3/8 Inch
- Vent Connection 2 Inch Female Threaded
- Power Cord Length 10 Foot
- Power Rating 1/2 Hp
- Input Supply Rating 115 Volt Ac 60 Hertz 1-Phase 7.3 Amp
- Speed Rating 3450 Rpm
- Temperature Rating 180 Deg F (Continuous)
- Motor Type Nema B Insulated Class F, Oil Filled, Permanent Split Capacitor, Thermal Overload Protection
- Inclusions/Features Gasket, Motor, Grounded Plug, Basin, Sealed Bearing, Quicktree Technology
- Application Bar Sink, Laundry Tray, Dehumidifier, Utility Sink And Gray Wastewater Drainage, Dishwaher
- Additional Information Locked Rotor Current Rating 16 Amp
- Maximum Stator Temperature 311 Deg F
- Stator Winding Class F
- Thermal Overload 284 Deg F
- Power Cord Type Sjtoow
