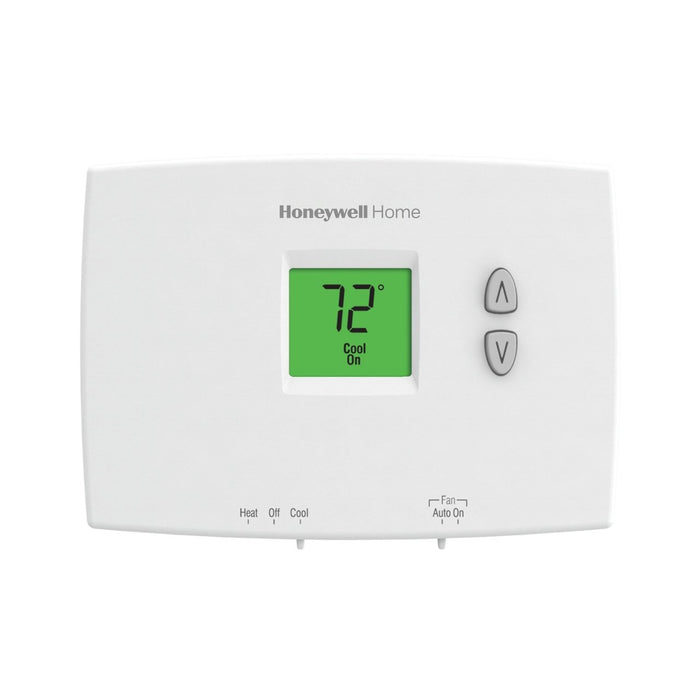

Honeywell TH1110DH1003 PRO 1000 | Horizontal Non-Programmable Thermostat - 1 Heat/1 Cool Heat Pump Systems • 1 Heat/1 Cool Conventional Systems

SIMPLE TO THE TOUCHFor homeowners looking for a traditional, easy-to-use thermostat, install the inexpensive PRO 1000 Horizontal Non-Programmable Thermostat. Your customers will appreciate the backlit digital display and the reliable basic operation of the slide switch to select heat, cool or fan.

• Non-Programmable Thermostat
• Brand Name Pro[R]
• Model 1000
• Type Digital Non-Programmable, 1-Heat/1-Cool, 1-Stage, Manual Changeover
• Cover Type Rectangular Horizontal
• Color Premier White
• Voltage Rating 20 To 30 Volt Ac/750 Millivolt At 50/60 Hertz
• Current Rating 0.02 To 1 Amp (Heat/Cool)
• Size 4-5/8 Inch Width X 1-3/16 Inch Depth X 3-7/16 Inch Height
• Additional Information Display Size 1.32 Square Inch
• Sensor Element Thermistor
• Terminal Designations R, Rc, C, W, Y, G, O, B
• Humidity 5 To 90 Percent Relative (Non-Condensing)
• Ambient Temperature 32 To 120 Deg F
• Setting Temperature Rating 40 To 90 Deg F (Heat), 50 To 99 De
