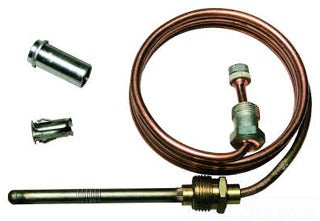

Honeywell Q390A1046/U 24" Thermocouple
Honeywell
SKU Q390A1046/U

Honeywell Q390A1046/U 24" Thermocouple

Sold Out
$7.92 - $7.92
$7.92
$7.92 - $7.92
$7.92
Availability:
Out of Stock
Title:
Title: Q390A1046/U

The Q390A thermocouples sense the pilot flame on standing pilot gas-fired heating systems. The pilot flame heats the tip of the thermocouple, producing a temperature differential between it and the base to generate 30 millivolts.

  • Thermocouple
  • Model Q390
  • Temperature Measuring Range 1400 Deg F (Hot Junction), 780 Deg F (Cold Junction)
  • Length 24 Inch
  • Connection Type 11/32 Inch-32 Tpi Male Connector Nut
  • Application Standing Pilot Gas Fired Heating System
  • Approval Csa
  • Additional Information Voltage Rating 30 Millivolt, 26 To 32 Millivolt (Open Circuit Output)
  • Resistance 0.02 Ohm
  • Includes Adapter And Push-In Clip
