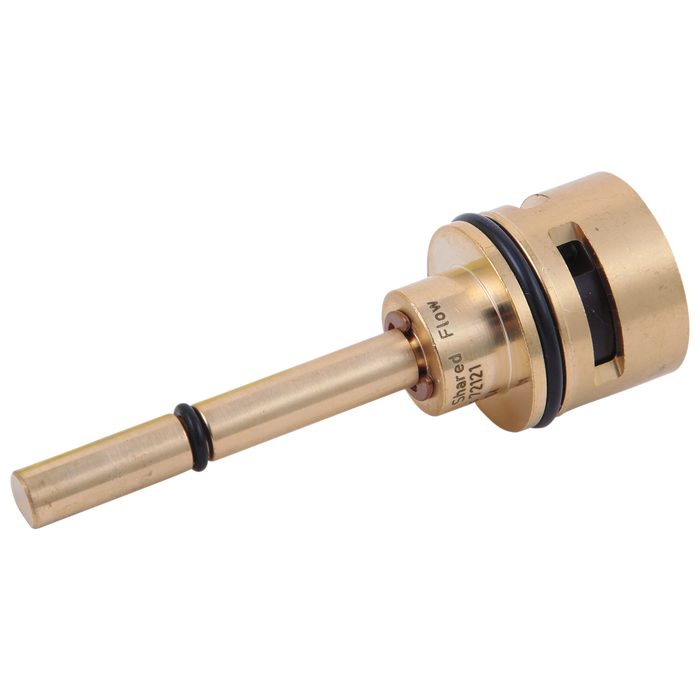

Delta RP71717 Cartridge Assembly - 2-Setting Diverter - Non-Shared

3-Setting Non-Shared Diverter Cartridge allows multiple features to be selected, when used with the Delta® diverter rough plumber for three features. Any of three features may be turned on individually. For example, select from shower, hand shower, or body sprays individually. The non-shared diverter is required in some regions to replace the standard 6-Setting Shared Diverter Cartridge RP51919. Available as an optional part.

• 3-Setting Non-Shared Diverter Cartridge Assembly
• Compatible with Delta Faucet diverter valve body R11000 and integrated valve body R22000 or R22000-WS
• 2 individual positions, no shared positions
• Works with both integrated and individual diverter trims
• Sold individually
• Overall dimensions: 1-5/16" L x 1-5/16" W x 4" H
• Product weight: 0.37 lb
• Material: Brass
