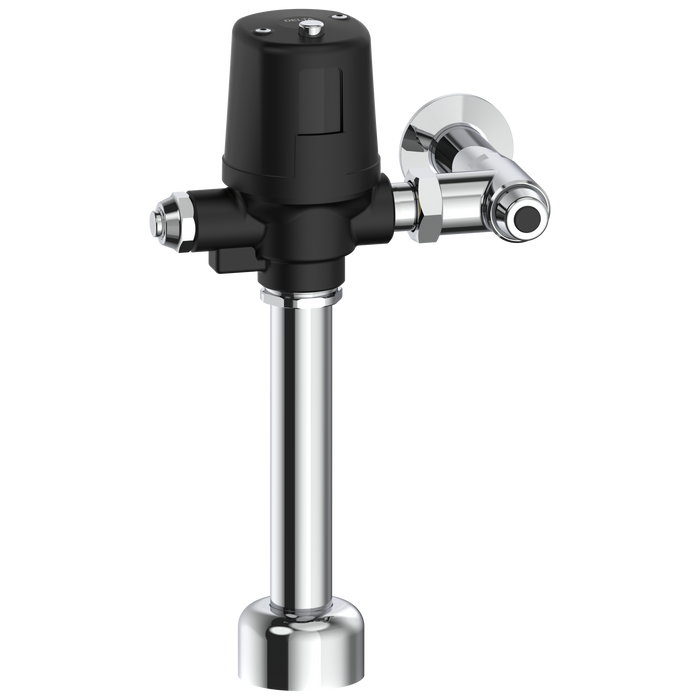

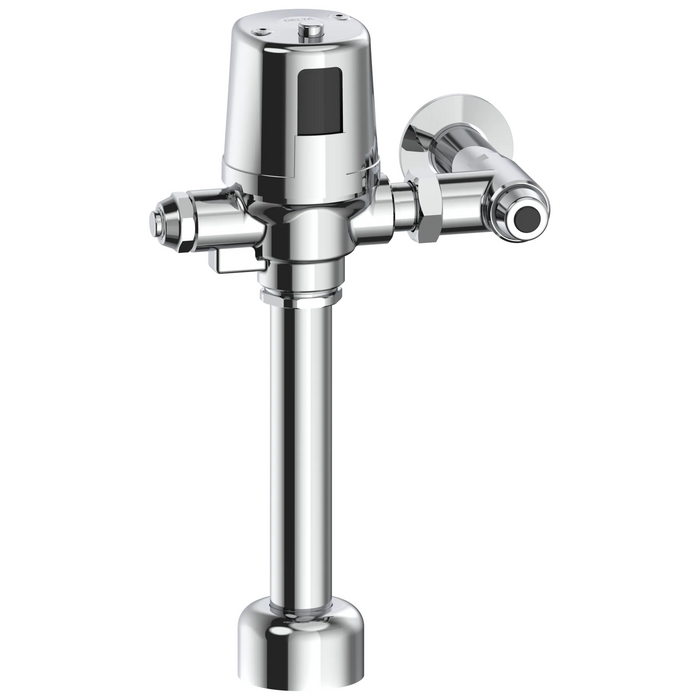

Commercial 81TBT / 81THW 81T201HWA Hardwire Flush Valve

Delta's H2Optics® hands-free technology is one of the most advanced sensing technologies in the industry today for electronic flush valves. With the ability to accurately sense the users' distance, regardless of external factors such as light reflection, clothing colour and textures or dryness of one's skin, H2Optics® technology provides consistent, dependable results.

• Features H2Optics® Technology for reliable, hands-free operation
• Manual mechanical override button allows manual flushing if power is temporarily unavailable
• 3/4" top spud, 13" high and 3/4" copper sweat inlet
• Factory set at 1.1 gallons (4.2 litres) @ 60 psi (414 kPa) - Not field adjustable
• Transformer to be ordered separately for hardwire models
• 1" inlet
• For 1-1/2" spud water closet fixture
• Hardwire flush valve for 1-1/2" top spud water closet with H2Optics® sensor on valve - maximum 11-1/2" height
• Mechanical manual override button
• Electronic operated non-hold-open metal override button with 5 second lockout
• Scratch resistant replaceable lens window
• Set-up sensor range adjustment indicator lights
• 110 to 24 VAC transformer required (sold separately - 060704A or 060771A)
• Weight: 9.0 lb
• Polished chrome plated vandal resistant metal cover
• Flow rate: 1.1 GPM
• Material: Brass
• Collection: 81TBT / 81THW
• WaterSense certified
