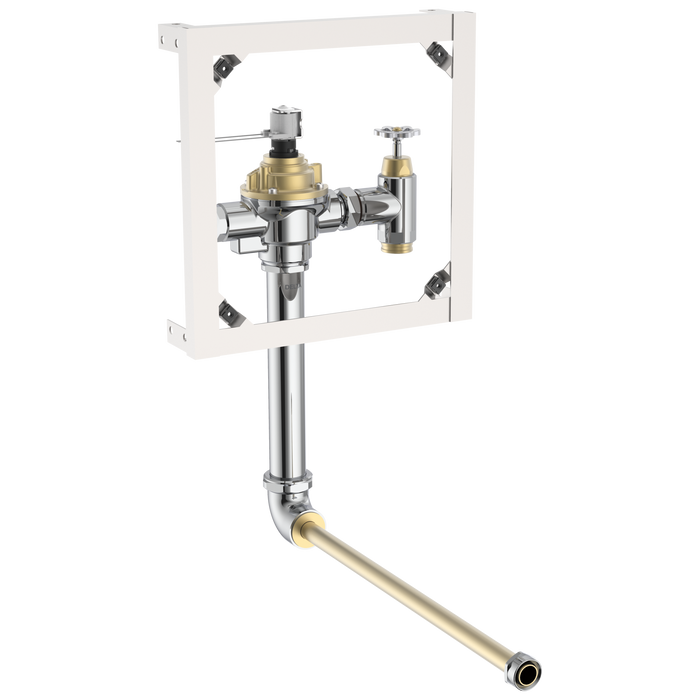

Delta Commercial 1600T Series: Electronic Flush Valve - Urinal
Delta
SKU 1600T6403ARI

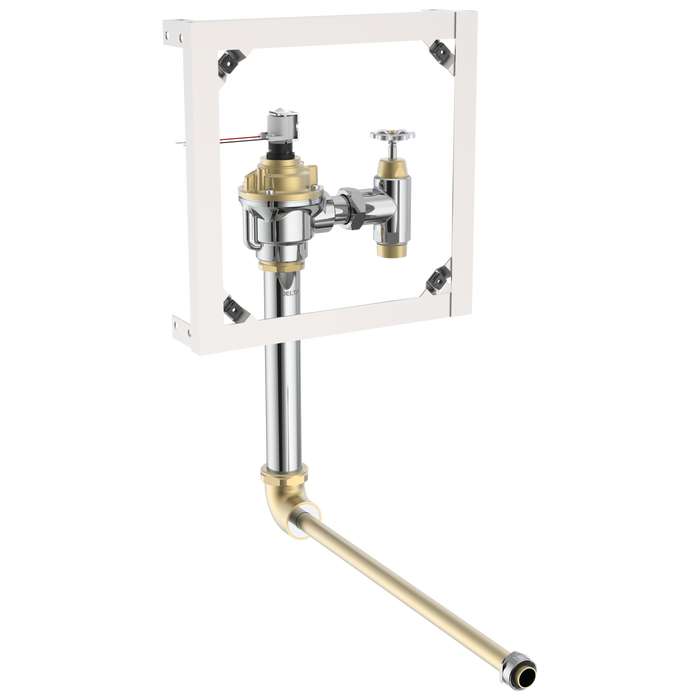

Commercial 1600T Series 1600T6403ARI Concealed Urinal Flush Valve Rough-in - Hardwire Operated

Sold Out
$399.65 - $399.65
$399.65
$399.65 - $399.65
$399.65
Availability:
Out of Stock
Color:
Color: Chrome (3)

Concealed Urinal Flush Valve Rough-in - Hardwire Operated

  • Urinal, 3/4" back inlet, syphon jet
  • 12" mounting frame with 14" cover
  • Rough-in ONLY (must order TRIM 1600T6403ATR for complete product)
  • Pressure loss check angle stop with wheel handle
  • Teck® chloramine resistant diaphragm
  • Renewable seat
  • Adjustable inlet/valve outlet centers
  • Flow rate: 0.5 GPM
  • Product weight: 10.95 lb
  • Collection: 1600T Series

Additional Resources

Specification Sheet
Installation Guide
