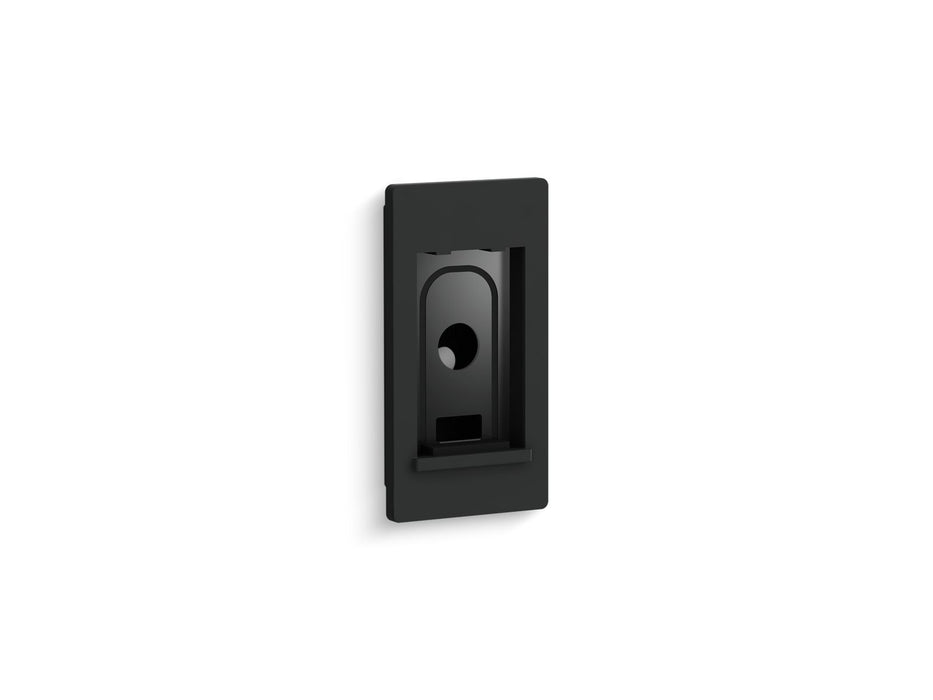

KOHLER K-97170 DTV+ Conversion kit for DTV II interface

KOHLER K-97170 DTV+ Conversion kit for DTV II interface

Digital Valves & Controls - KOHLER

Regular price
$411.20
Sale price
$411.20
Regular price
$771.00
Sold out In Stock
Unit price
per
Shipping calculated at checkout.

Update your DTV showering system with touchscreen control. This kit is an easy way to upgrade an installed DTV II interface to the latest DTV+ touchscreen interface. By utilizing the existing interface wall sleeve, the new interface can be installed without making any expensive changes to the finished wall surface. The kit also includes a wiring connection adapter, eliminating the need to route new wiring or open walls.


  • Upgrade an existing installed DTV II primary interface (K-695) to a DTV+ interface (K-99693).
  • Kit includes cover plate and all required cables to convert the existing components to work with the new DTV+ system controller and interface, including a wiring connection adapter to utilize existing in-wall cables.
  • If the existing installation includes a Media Module (K-638), this component is not compatible with the DTV+ interface and must be removed from the system.
  • If the audio/music feature of the media module is currently being used, this must be replaced by installing the DTV+ amplifier module (K-99696). The audio/music functionality is different from the media module. Refer to the amplifier product details for m
  • If external lighting is controlled via the media module, this must be rewired to a wall switch. Refer to the installation instructions for more information.
  • If installed, the auxiliary interface (K-686) must also be upgraded at the same time using the K-97171 conversion kit.
  • Note that DTV II landscape primary interfaces (K-694) cannot be upgraded to the DTV+ interface.

Additional Resources:
Specification Sheet
Installation Instructions
