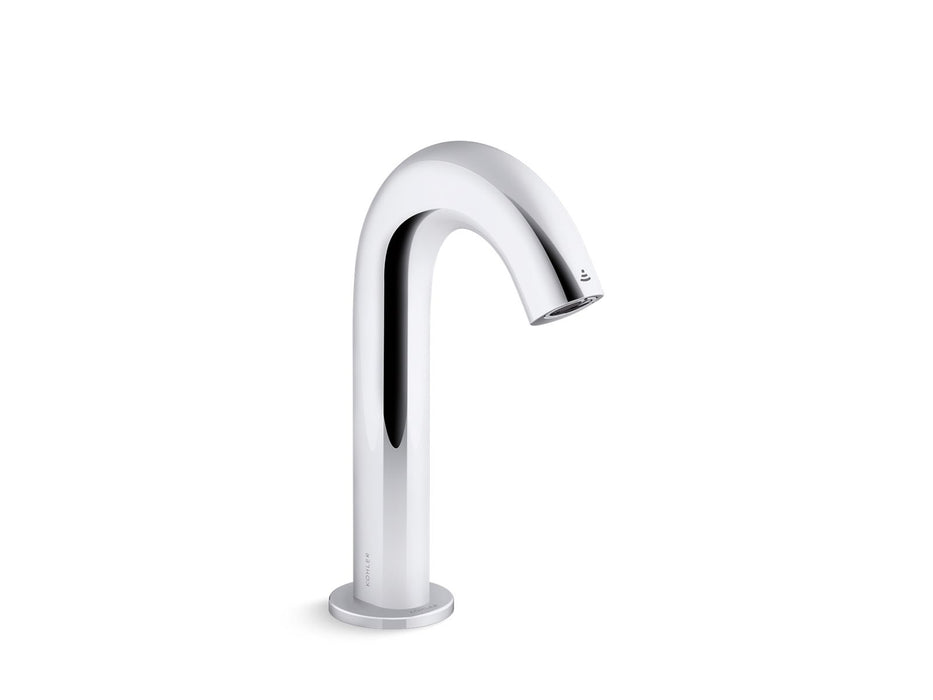

KOHLER K-106B77-SANA Oblo Touchless faucet with Kinesis sensor technology and temperature mixer, Hybrid-powered
Distinguished by a bold shape, the K-106B77-SANA hybrid-powered faucet features Kinesis technology for highly accurate and consistent activation.
- Kinesis technology with concealed sensor allows for a clean aesthetic and provides extraordinarily accurate and reliable actuation in varying installation environments
- Below-counter valving reduces the faucet footprint and provides easier service
- Design-forward aesthetic for commercial bathroom spaces
- 0.5 gpm (1.9 lpm) maximum flow rate
- Powered by Kohler's Hybrid Energy System (HES), which provides maintenance-free power for up to 30 years (approx. 875,000 cycles)
- On-demand usage with 30-second max. continual run cycle to prevent vandalism and save water
- Vandal-resistant aerator
- 18" (457 mm) stainless steel braided flexible supply hose for easy installation
- 4-7/8" (124 mm) spout reach
- Grid drain
- Includes concealed mechanical mixer
- Complies with the Safe Drinking Water Act (SDWA)
- Flow rate: 0.5 GPM
- Overall dimensions: 6-11/16" L x 2-1/4" W x 9-1/4" H
- Product weight: 6 lb
- Material: Brass
- Installation: Single-hole
- ADA compliant
- Suitable for commercial use
- KOHLER® One-Year Limited Warranty
Additional Resources
CAD & BIM Files
Revit (BIM) · 3D DWG · 3D DXF · 3D OBJ · SketchUp · 3D Studio · 2D DWG - Front · 2D DWG - Plan · 2D DWG - Side · 2D DXF - Front · 2D DXF - Plan · 2D DXF - Side
